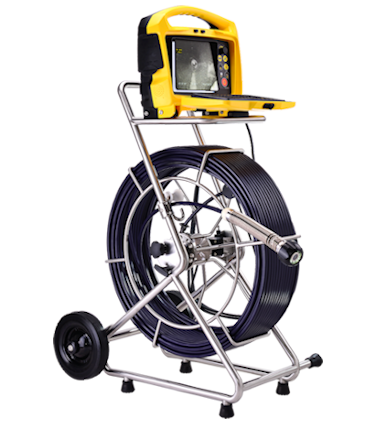

The vCam-6 HD inspection system from Vivax-Metrotech gives you the flexibility to cover a range of pipe inspections including municipal collection systems, residential plumbing, indoor commercial lines, and lateral lines from Three inches up to Sixteen inches in diameter. Our camera systems use the latest technology packaged in a rugged, lightweight, compact profile made specifically for the harsh conditions related to sewer lateral inspections. All Vivax-Metrotech camera systems are backed up by a full one-year warranty and we provide free on-site training. Built tough and reliable for everyday use, the versatile vCam-6 is a good fit for plumbers, contractors, home inspectors, building maintenance supervisors, or anyone looking to inspect the interior of a pipe or duct. Create crisp, detailed HD video inspections with audio comments, text descriptions, footage, date, and timestamps to submit to your customers without worry. Putting in a full days’ worth of work is easy with the four-hour battery life and charging on-the-go with the provided AC and DC charging leads. Increase productivity and profitability with the vCam-6 feature rich lateral and small mainline inspection camera system.
vCam-6 Spec Sheet vCam-6 Brochure

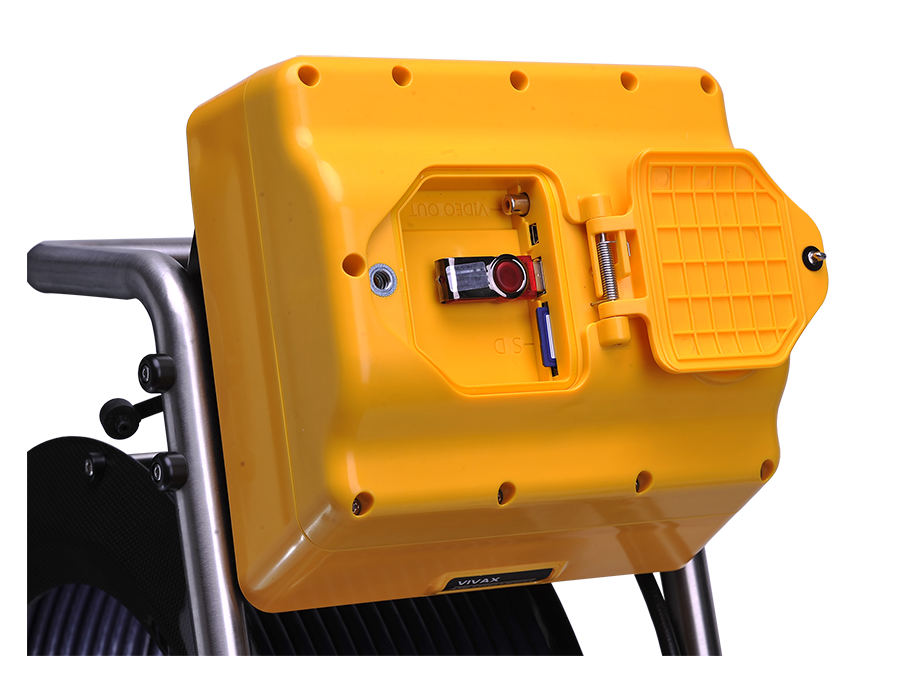

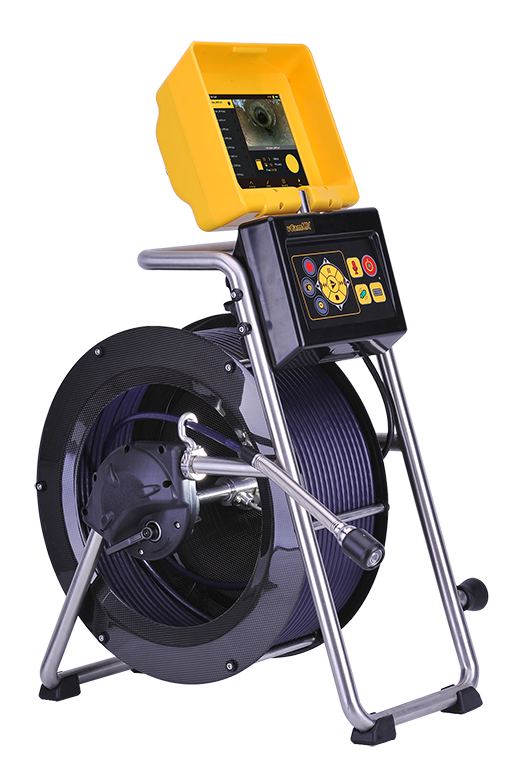

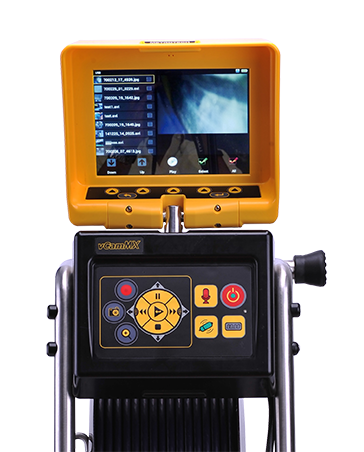

The vCamMX-2 all-in-one mini inspection system gives you the flexibility to cover a range of inspections including indoor drain lines, residential plumbing, indoor commercial lines, and lateral lines up to four inches in diameter. The vCamMX-2 control module is designed and manufactured with the plumbing contractors' needs in mind. The latest technology in imaging and recording are packaged in a rugged ABS injection molded housing mounted to the stainless-steel frame is made specifically for harsh conditions. The Type-MX reels are made of stainless steel tubular construction with a lightweight rugged carbon fiber pushrod drum. The multi angle LCD and frame which can be used in an upright or horizontal position is usable in tight confined space use and stores easily in most utility vehicle compartments. The pushrod is traceable with the use of a utility locater transmitter and comes with a dual frequency built-in locatable sonde. Two user interchangeable camera heads fit the Type-MX reel giving the user flexibility to handle lines from one to four inches. The system is available in 100 and 150 foot lengths.
vCamMX-2 Spec Sheet vCamMX-2 Brochure
Using a skid with your camera system can accomplish three things. Firstly, the skids center the camera head and keep it off the floor of the pipe. Secondly it will reduce drag on the camera head which results in greater pushing distance. Lastly, the skids protect the camera head.

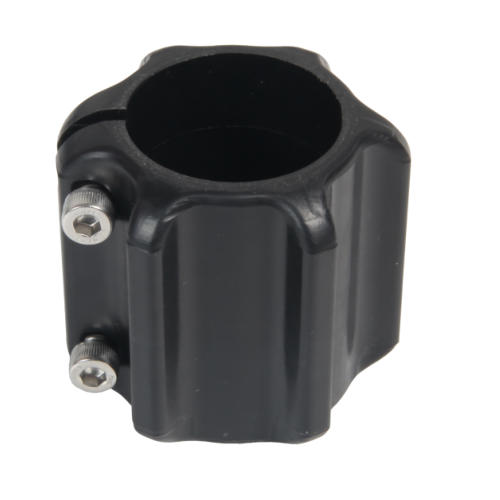

The 2-1/4” Skid is a good fit day to day usage skid. This skid will keep the camera off the floor of the pipe, protects the camera and helps improve the lighting. Available for the D18-MX and D34 series cameras.

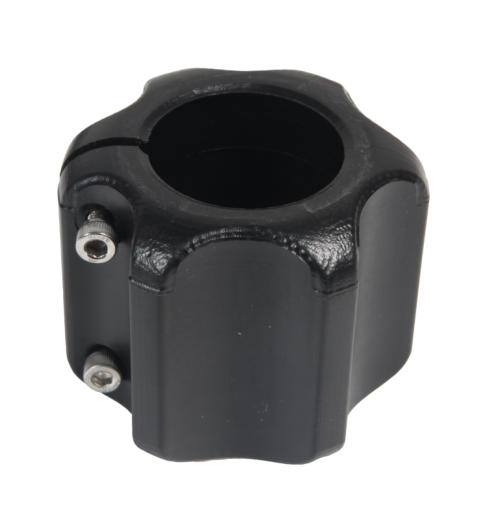

The 3” Skid is best used in 4 inch to 6 inch pipes. The skid will keep the camera off the floor of the pipe, protects the camera and helps improve the lighting. Available for the D26-MX, D34, and D46 series cameras.

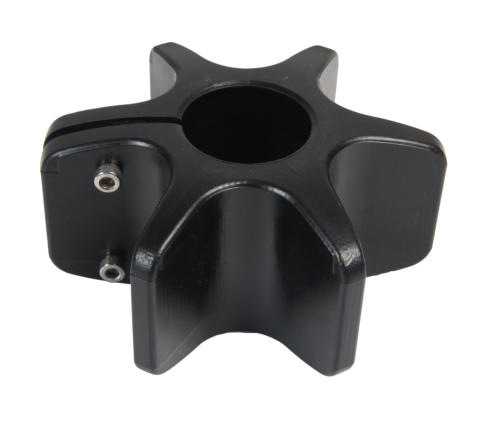

The 4” Skid is best used in 6 inch pipes. The skid will keep the camera off the floor of the pipe, protects the camera and helps improve the lighting. Available for the D34 and D46 camera series.

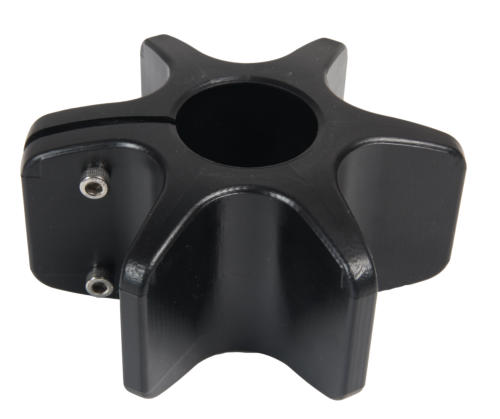

The 5” Skid is best used in 6 inch to 8 inch pipes. The skid will keep the camera off the floor of the pipe, protects the camera and helps improve the lighting. Available for the D46 camera series.

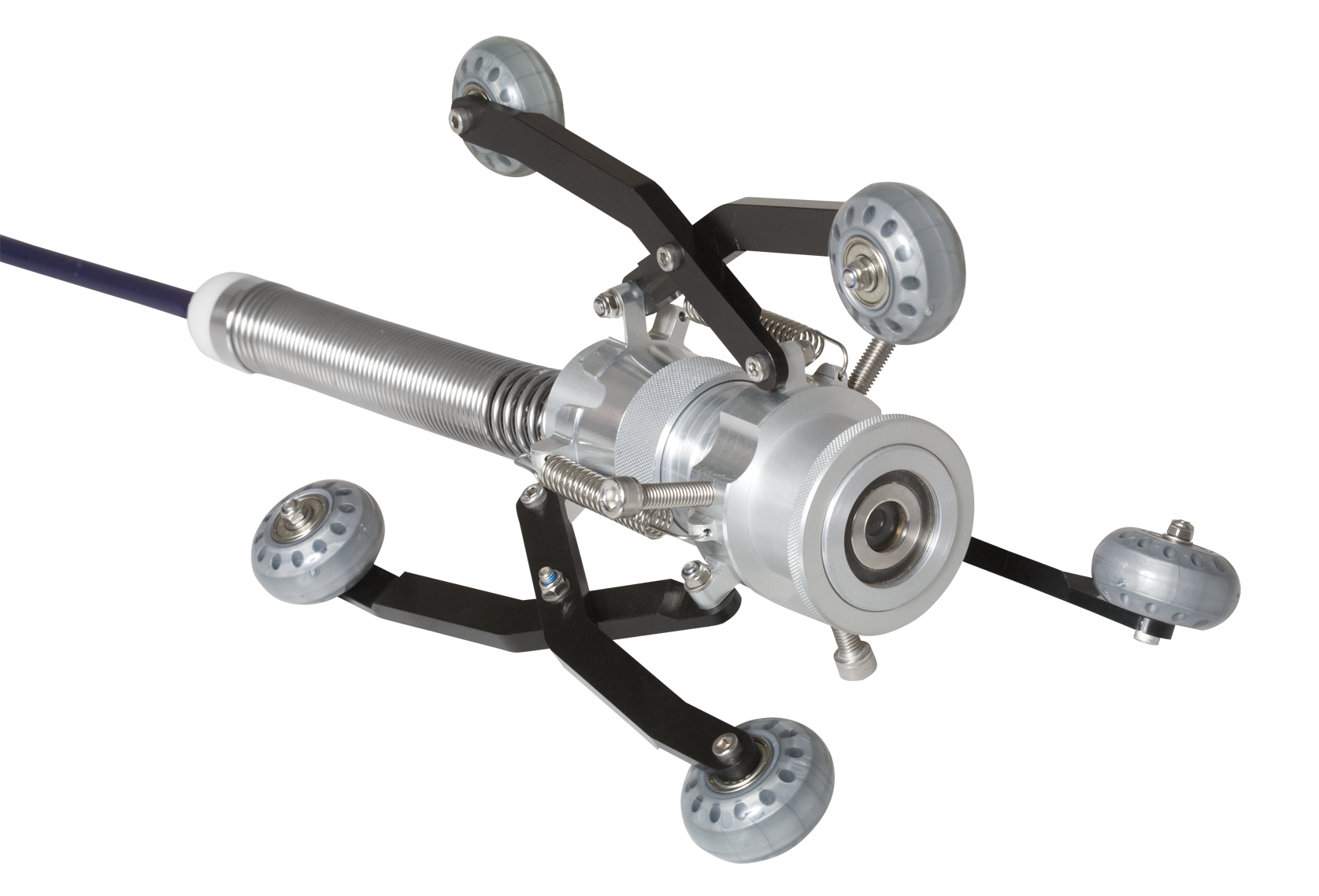

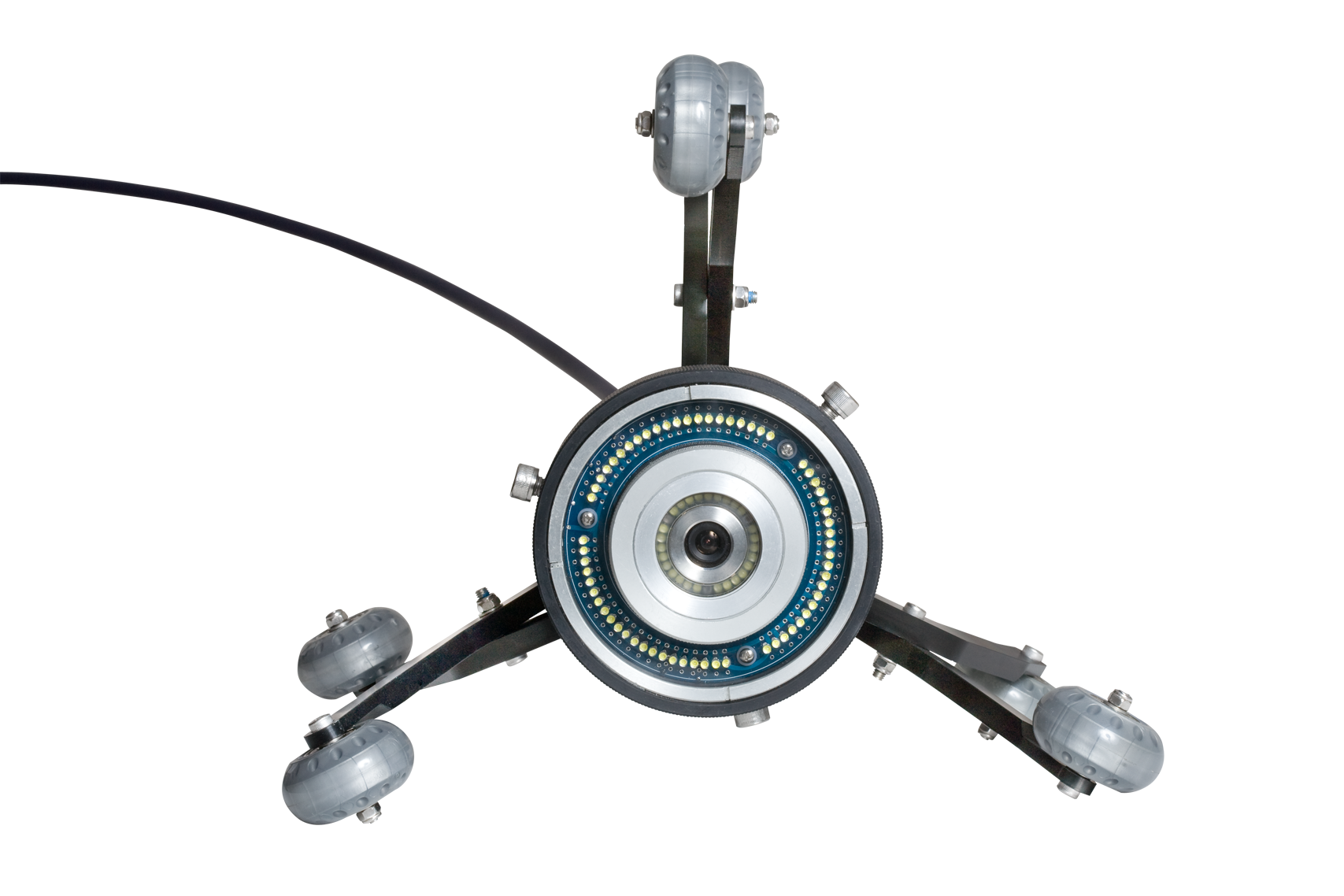

Type-B Skid is adjustable with roller blade type wheels. It can be used in all pipe materials and adjusts from 8 to 12 inches. Available for the D34 and D46 camera series.
Extend the range of the Type-B Skid by adding the powerful 6000 MCD Light Kit. The Light Kit is powered by three AA alkaline batteries.
Type B Skid Spec Sheet Type B Skid User Guide
The vLoc3-Cam is the easiest to use sonde locator on the market today. The omni-directional antenna array allows for approaching the sonde from any position. The directional arrows will guide the user first to the front or rear locate point and then directly to the sondes position. The vLoc3-Cam includes multiple sonde frequencies making it compatible with the major push cameras and crawler cameras on the market. The Pushrod Trace mode shows a second display geared for tracing the path of the pushrod deployed in the pipe or tracing pipes with an optional portable transmitter. The vLoc3-Cam comes with two Passive locate modes of Power and Radio which will detect the presence of live power lines, CATV, telephone and some metallic pipes which radiate 50/60 Hz from nearby or overhead power lines. For active locating, with the use of a portable transmitter, the vLoc3-Cam comes with an 83.1kHz frequency for tracing the pushrod. This frequency is also ideal for water and gas utilities which generally are larger pipes with bell housings and gaskets as well as locating ungrounded small diameter drop wires and inducing signals through the soil, onto services when direct connecting is not an option.
vLoc3-Cam Spec Sheet vLoc3-Cam Sales Sheet vLoc3-Cam Handbook
The vScan utility and sonde locator has been designed to make buried utility and sonde detection a simple and cost-effective process. Worksite friendly controls combined with the latest electronic hardware and software make the vScan the ultimate utility avoidance tool. Main features and operational controls are in keeping with industry standards so minimal training is required. A large dot matrix display gives the vScan the ability to display signals in a clear and unique way. ABS moldings and rubber protection buffers ensure the vScan continues to give reliable service even in the harshest of conditions. The vScan Receiver comes standard with sonde/camera frequencies of 512Hz and 33KHz. Together with the dual frequency transmitter, data logging, optional metal manhole cover detector, GPS, and Bluetooth, the vScan is available in various models to suit all applications. The MyvScan software management tool allows easy transfer of data and allows the setting up of alarms, reporting, and configuration details. Use MyvScan to download free software upgrades for life ensuring your vScan is future proof and always up to date. A built-in calibration check routine ensures cost of ownership is kept to a minimum while maintaining safety standards.
vScan Spec Sheet vScan Brochure
The VM-540 Sonde Locator is designed for reliable daily use in hostile environments. The VM-540 comes standard with sonde/camera frequencies of 512Hz, 640Hz, and 33KHz. The VM-540 receiver is also equipped with a “passive” Power locate mode which will detect the presence of power lines and some metallic pipes which radiate 60 Hz from nearby or overhead power lines.
VM-550 Spec Sheet VM-540 User Guide
