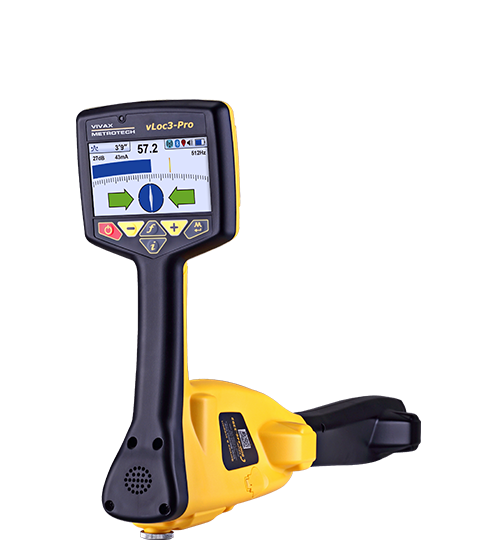

The vLoc3-Pro utility locator introduces new innovative tools for locating buried utilities.
Along with the classic locate screen, the vLoc3 series locators offer Four new locate perspective screens:
With two sets of screened 3D antennas, signal distortion is easily detected and displayed on the bright full color display. The user configurable vLoc3 series contains eight passive locate modes, fault-find mode, and a range of frequencies from 50Hz to 200KHz. Audio and mechanical vibration alerts provide warnings for shallow depth, overload, overhead cables, and excessive swinging. Plug-in-play options for the receiver include optional Bluetooth module useable with external GPS devices, a carbon fiber A-Frame for fault and holiday locating, and an EMS foot to locate buried markers.
vLoc3-Pro Handbook vLoc3-Pro Receiver Spec Sheet vLoc3-Pro Sales SheetThe vLoc3-9800 utility locator introduces new innovative tools for locating buried utilities:

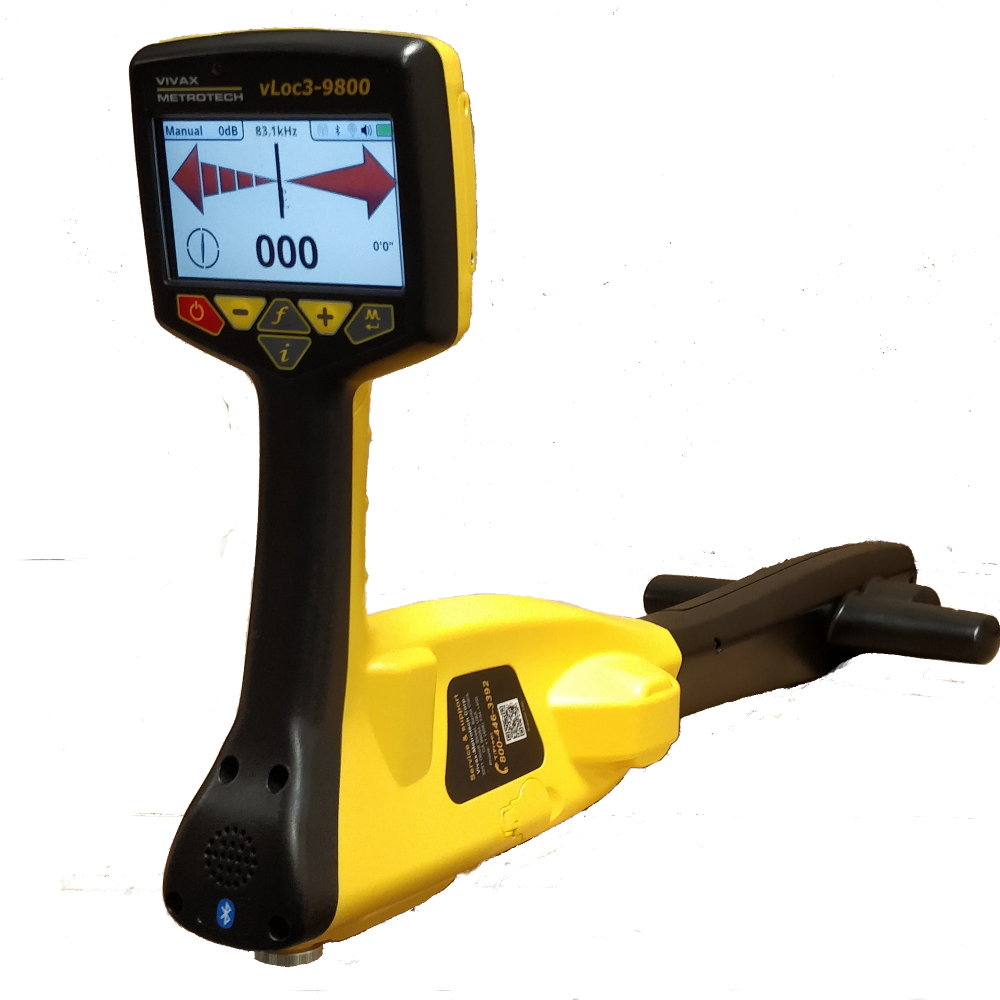

The vLoc3-9800 utility locator introduces new innovative tools for locating buried utilities assuring damage prevention while gathering information for analysis. With two sets of screened 3D antennas signal distortion is easily detected and displayed on the bright full color display. The highly user configurable vLoc3-9800 contains two passive locate modes, and a range of configurable frequencies from 16Hz to 200 kHz. Audio and mechanical vibration alerts can also be configured by the user providing warnings for shallow depth, overload, overhead cables, and excessive swinging. Plug-and-play options for the receiver include optional Bluetooth module useable with external GPS devices and EMS foot to locate buried markers. Depth of cover and current on the line are shown with the push of a button. With the optional A-Frame the user can pinpoint cable faults with directional arrows. The vLoc3-9800 provides versatility with low frequencies for the telecom, power, and CATV industries as well as higher frequencies for the gas, water and sewer industries.
vLoc3-9800 Handbook vLoc3-9800 Receiver Spec Sheet vLoc3-9800 Sales Sheet
The vLoc3 RTK-Pro receiver is the first to add RTK GNSS accuracy to a utility locator. Using the RTK-Pro internal cellular module with 4G LTE capabilities, the operator has the ability to connect to NTRIP RTK (Real-Time Kinematic ) caster that provides RTCM 3 corrections. By utilizing these corrections, the operator can collect both utility location data along with the geographical location of the utility with survey-grade accuracy. The RTK-Pro was designed for use at all operator levels, utilizing user-friendly and intuitive locate screens. Operators simply confirm the utility data with the press of a button and align the electronic spirit level to store the data. All field data is sent to the cloud and retained in the receivers onboard storage for review and exporting to external mapping programs.
vLoc3RTK-Pro User Handbook vLoc3RTK-Pro Spec Sheet vLoc3RTK-Pro Sales Sheet

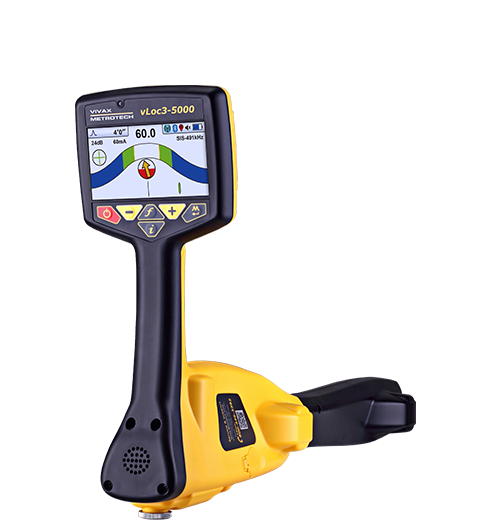

The vLoc3-5000 utility locator introduces new innovative tools for locating buried utilities and position capturing to buried utility locating. Data captured by the internal GPS can be downloaded for further analysis, for use with GIS systems, and for use with google earth. Connect your vLoc3-5000 to your smartphone using the internal Bluetooth module and free VM-MAP application to create real-time maps. The VM-MAP aplication stores the GPS data and data from the locator such as: time, date, depth of cover, and current on the line. You can also change the utility markers on the map, save new maps for each job, and add photos and custom comments to each entry. Along with the classic locate screen, the vLoc3-5000 locator also offers the Four new locate perspective screens.
With two sets of screened 3D antennas, signal distortion is easily detected and displayed on the bright full color display. Not only does the vLoc3-5000 locator contain eight passive locate modes, fault-find mode, and a range of frequencies from 50Hz to 200KHz. The vLoc3-5000 also uses Signal Select and Signal Direction frequencies to show you the direction of the outgoing current. These additional frequencies help to prevent the locator from bleeding off on to other buried utilities. Audio and mechanical vibration alerts provide warnings for shallow depth, signal overload, overhead cables, and excessive swinging. Plug-in-play options for the receiver include a carbon fiber A-Frame for fault and holiday locating and an EMS foot to locate buried markers.
vLoc3-5000 User Handbook vLoc3-5000 Receiver Spec Sheet vLoc3-5000 Sales Sheet

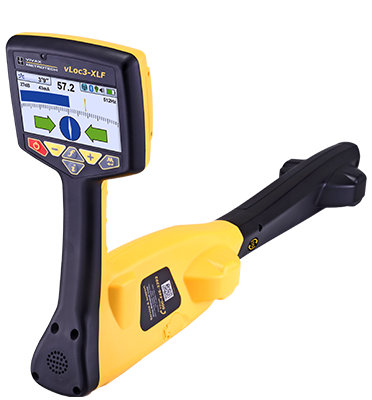

The vLoc3-XLF locator uses extra-low frequencies specific for long-line locating. The low frequencies used in the XLF are designed to travel further distances with less coupling onto adjacent lines and be less susceptible to distortion. A few applications ideal for low-frequency locating is long-haul fiber lines, metropolitan loop networks, and pipeline transmission lines. With two sets of screened 3D antennas, signal distortion is easily detected and displayed on the bright full-color display. Along with the classic locate screens, the vLoc3 series locators offer new locate perspective screens of:
vLoc3-XLF Spec Sheet vLoc3-XLF Sales Sheet

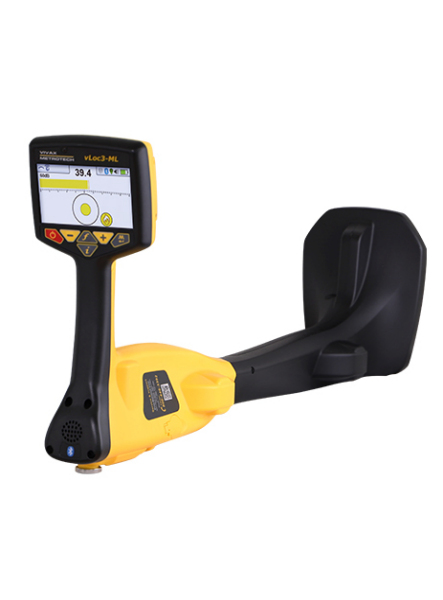

The vLoc3-ML with built-in transceiver is designed for contractors and utility companies to accurately detect and pinpoint major brands of buried passive electronic markers. The vLoc3-ML locator combines Vivax-Metrotech’s advanced line locating technology and electronic marker system (EMS) detection in a single instrument capable of detecting and measuring the depth of commercially available EMS markers.
Access the vLoc3-ML’s line locating or marker detection mode with one press of the receiver’s softkey. The intuitive operational display provides simple maneuvering of all the available features – frequency selection, marker selection, dedicated or dual marker modes and access to the main menu for other advanced features. The optional Tx-Link (radio link between receiver and transmitter) allows remote operation of the transmitter’s functions at distances over 300m/985ft. Built on the vLoc3 digital signal processing platform, the vLoc3-ML is equipped with advanced line locating features such as Signal Direction, Vector mode, Transverse Graph mode, Plan View, Guidance Compass, Distortion Alerts, and Left/Right Guidance Arrows that make locating conductive lines and cables more intuitive.
vLoc3-ML User Handbook vLoc3-ML Spec Sheet vLoc3-ML Sales Sheet

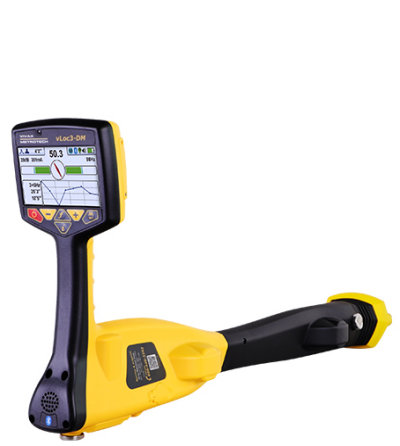

The vLoc3-DM is used to precisely locate pipelines and assist in evaluating pipe coating defects. The system can be used on either transmission or distribution systems. A complete ACVG survey can be undertaken using the vLoc3-DM and plug-in A-frame. The display on the vLoc3-DM has been configured specifically for pipeline evaluation. Data can be graphed in real-time on the receiver while still on site. The walk back feature highlights the operator’s position on the graph allowing them to return to the point of interest where further evaluation or an ACVG, A-frame survey can be undertaken.
With two sets of 3D antennas, signal distortion is easily detected and displayed on the bright full-color display. The vLoc3-DM introduces new locate perspective screens of Vector Locate for fully automatic non-walk over locating, Transverse Graph showing both peak and null simultaneously providing an immediate measurement of signal distortion, and Plan View showing the relative orientation of the cable at any angle. Visual and mechanical vibration alerts can also be configured by the user providing warnings for shallow depth, overload, overhead cables, and excessive swinging. The 150-watt Loc-150Tx DM Transmitter typically applies the locate signal by connecting to the pipe at CP stations and test posts. The transmitter is designed to be powered from CP stations, AC or external batteries. Two rotary/push control knobs provide access to frequency selection, output level, menu information and active/standby modes. This transmitter is supplied with a direct connection lead, DC input lead and AC mains lead.
vLoc3-DM User Handbook vLoc3-DM Spec Sheet vLoc3-DM Sales Sheet
The 10-Watt broadband transmitter has selectable induction and direct connection frequencies from 98Hz to 200kHz, SD mode (Signal Direction), fault find and true resistance measurement up to 1 Mohm. The two inch by one-inch dot matrix display with LED backlight shows output current, connection type, volts, resistance, frequency, volume, battery condition and high voltage warnings.
Loc3-10Tx SIS Spec Sheet Loc-10Tx Sales Sheet Transmitter Spec Sheet

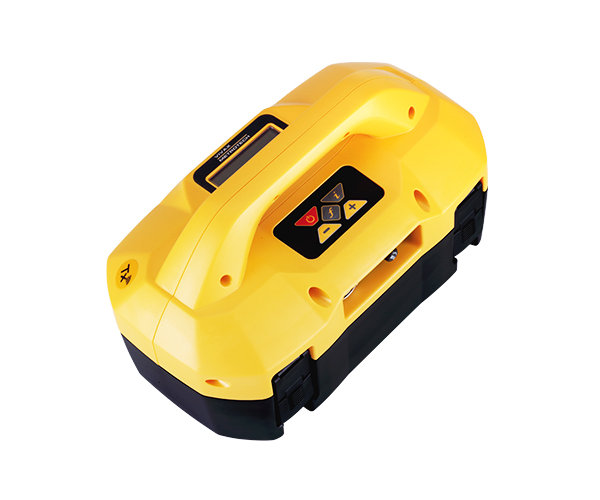

The 5-Watt broadband transmitter has selectable induction and direct connection frequencies from 98Hz to 200kHz, SD mode (Signal Direction), fault find and true resistance measurement up to 1 Mohm. The two inch by one-inch dot matrix display with LED backlight shows output current, connection type, volts, resistance, frequency, volume, battery condition and high voltage warnings.
Loc3-5Tx Brochure Transmitter specification

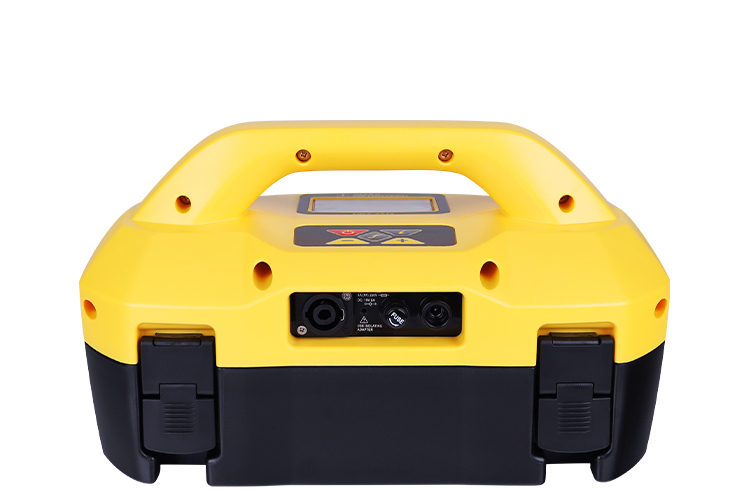

The powerful 25-watt transmitter is the go-to transmitter for cable fault locating, finding holidays on coated pipes, problematic deep-buried lines, and long-distance pipe and cable locating. The Loc3-25Tx is also well suited for applications for cathodic protected longline pipelines and gas distribution in city areas needing a low-frequency high output transmitter. The Loc3-25Tx transmitter has selectable direct connection frequencies from 32Hz to 9.82kHz and signal clamp frequencies from 8kHz to 9.82kHz. The two-inch by one-inch dot matrix display with LED backlight shows the user output current, volts, frequency and user feedback warnings. The Loc3-25Tx is packaged in a rugged, ergonomic IP54 housing and is lightweight at only 7.05lbs (3.19kg). The transmitter provides consistent current output up to 4 Amps peak. The transmitter comes in a soft carry bag with a storage pocket for everyday accessories and can be operated while inside the carry bag.
Loc3-25Tx Insert Sheet Loc3-25Tx Sales Sheet Loc3-25Tx Spec Sheet
The VM-810 and VM-850 are the updated replacements for the classic Metrotech 810 and 850. The simple one button operation and left/right guidance is now backed by upgraded electronics and rugged weather resistant housings. The VM-810 operates at 83kHz making it ideal for water and gas mains. The VM-850 operates at 9.82kHz making it ideal for power, telephone and CATV.
VM-810 Spec Sheet VM-850 Spec Sheet VM-810 & VM-850 Brochure

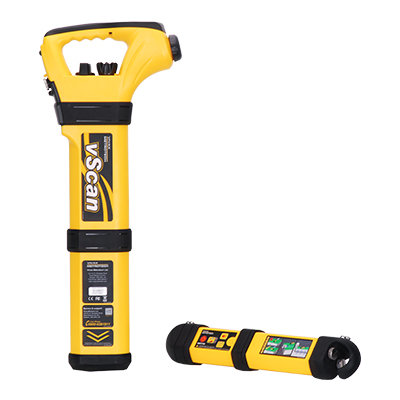

The vScan utility and sonde locator has been designed to make buried utility and sonde detection a simple and cost-effective process. Worksite friendly controls combined with the latest electronic hardware and software make the vScan the ultimate utility avoidance tool. Main features and operational controls are in keeping with industry standards so minimal training is required. A large dot matrix display gives the vScan the ability to display signals in a clear and unique way. ABS moldings and rubber protection buffers ensure the vScan continues to give reliable service even in the harshest of conditions. Together with the dual frequency transmitter, data logging, optional metal manhole cover detector, GPS, and Bluetooth, the vScan is available in various models to suit all applications. The MyvScan software management tool allows easy transfer of data and allows the setting up of alarms, reporting, and configuration details. Use MyvScan to download free software upgrades for life ensuring your vScan is future proof and always up to date. A built-in calibration check routine ensures cost of ownership is kept to a minimum while maintaining safety standards.
MyvScan Setup vScan Training powerpoint vScan Spec Sheet vScan Brochure
The VM-585 Utility Locator and Ferrous Metal Detector is typicaly used to locate short distance runs such as service drops and to detect buried ferrous metal objects such as buried valve box covers and buried tanks. With a 60Hz passive power locating frequency and three active frequencies of 512Hz, 8.19KHz, and 83KHz, the VM-585 will meet the requirements of those wishing to detect the presence of active power cables and to trace short ranges. The advanced filtering of the VM-585 rejects materials such as bottle caps and aluminum cans and zeros in on finding only ferrous materials. The manual gain control allows it to be controlled and able to work close to large metal objects such as automobiles and chain link fences while still looking for the targets underground. The VM-585 will locate through asphalt, concrete, or grass, and in temporary conditions such as snow. The VM-585 transmitter also has the additional frequency of 8kHz Fault-find so it can be used to detect the presence of ground to sheath faults on cables when used with the VM-510 Stand Alone A-Frame fault locator. The 1-Watt VM-585 transmitter applies a locate frequency by direct connection or induction, and an optional Induction Clamp can be used to clamp around a line to induce the locate signal onto it.
VM-585 Spec Sheet VM-585 Brochure

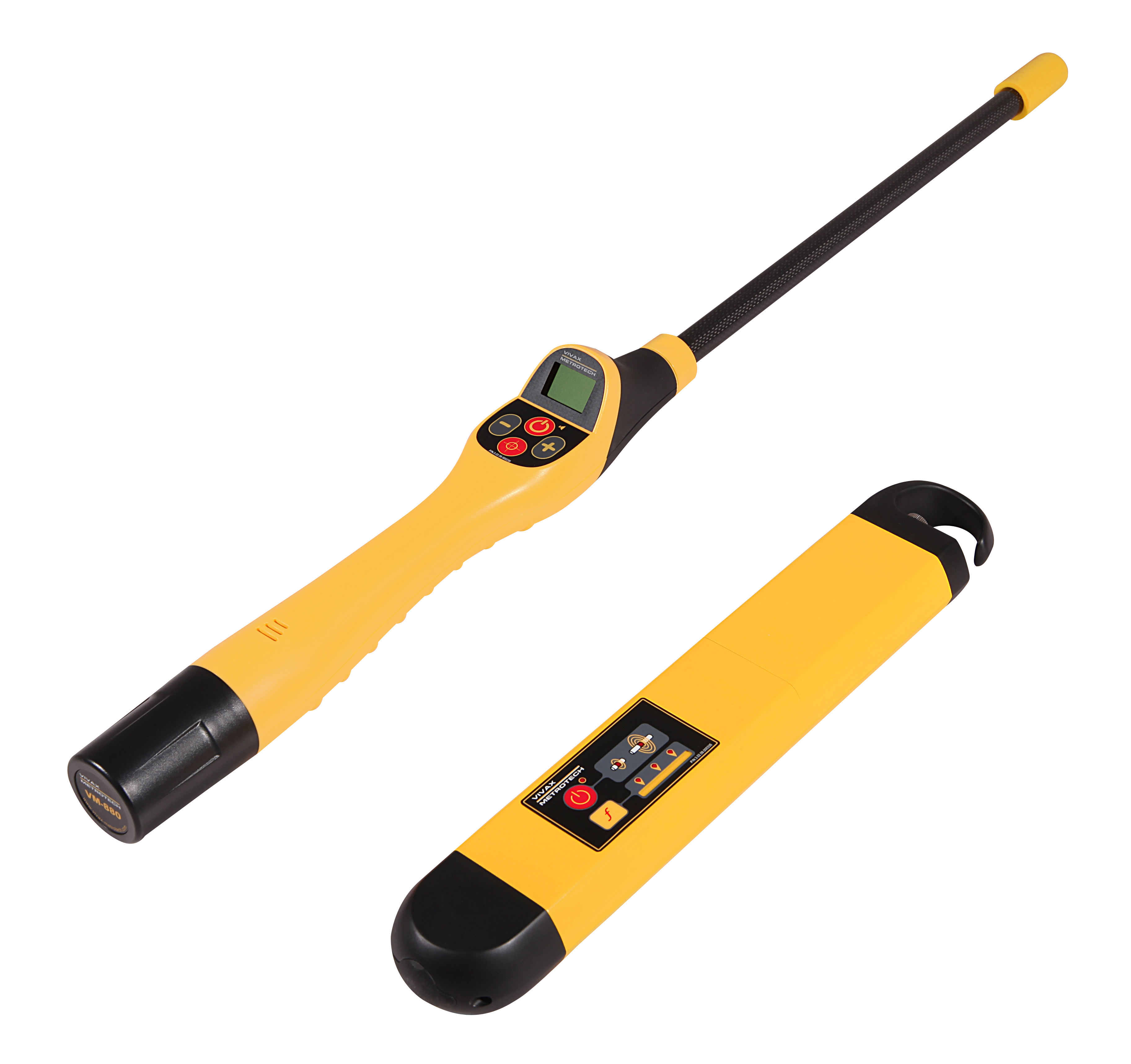

The VM-550 Drop Locator kit is a general-purpose locator used to detect buried pipe and cable services in a variety of situations. With a 50/60Hz passive power locating frequency and three active frequencies of 512, 8.19kHz, and 83KhZ, the VM-550 will meet the requirements of those wishing to detect the presence of active power cables and to trace short ranges. The VM-550FF transmitter also has the additional frequency of 8kHz Fault-find so it can be used to detect the presence of ground to sheath faults on cable when used with the VM-510 Stand Alone A-Frame fault locator. The 1-Watt VM-550FF transmitter applies a locate frequency by direct connection or induction. Optional Induction Clamps can be used to clamp around a line and induce the locate signal onto it.
VM-550 Spec Sheet VM-560 Spec Sheet VM-550 and VM-560 Brochure

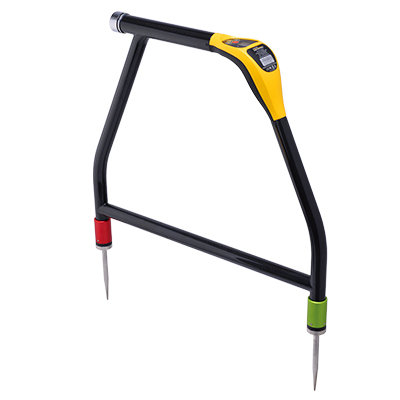

Finding the location of an underground cable fault just became easier with the VM-510FFL+ Standalone A-frame locator. Now locating a suspect cable and finding the fault can be done with the VM-510FFL+ and a compatible transmitter. There is no longer a need for a separate utility locator with cables connecting to it. After connecting a compatible transmitter to the line and placing it in a Fault-Find mode, use the simple to operate four button controls of the VM-510FFL+ to locate and stay on the cable path while pinpointing the sheath or ground fault. The robust design includes a high contrast LCD with automatic backlight and weatherproof speaker for both visual and audio indicators. The lightweight carbon fiber material is suited for continuous usage on long cable runs to locate the line and pinpoint the faults.
VM-510FFL+ Spec Sheet VM-510FFL+ Brochure
The VM-880 Ferromagnetic Locator is designed to easily locate buried ferrous objects while rejecting non magnetic objects such as aluminum cans and bottle caps. Particular attention has been made to ensure the weight of the VM-880 is minimized without compromise to strength. At just 1.54lbs (0.7kg), it is by far the lightest in its class. The submersible carbon fiber antenna tube is both lightweight and provides maximum protection to sensitive sensors. The VM-880 includes all the latest features such as field polarity, 50/60Hz warning, continuous battery level, signal strength indicators, and one touch sensitivity control.
VM-880 Spec Sheet VM-880 Brochure
The VM-480B “Split-Box” buried utility locator is a versatile locating instrument designed for locating and tracing the path of pipes and cables and detecting energizing 50/60Hz power lines. The split-box design makes it easy to conduct blind searches, ground surveys, and locate underground metal masses. The depth of cover to the buried utility can be calculated using the triangulation method. The VM-480B gets it’s Split-Box nickname by its unique design. The box design separates into two parts. One being the Transmitter, which sends out the locate signal. The other part being a Receiver which picks up the signal coming from the Transmitter or line radiating 50/60Hz. Mounting the locator on the optional Search Handle accessory simplifies the task of conducting blind searches, ground surveys, and locating underground metal masses.
VM-480B Technical Specs VM-480B User Handbook
